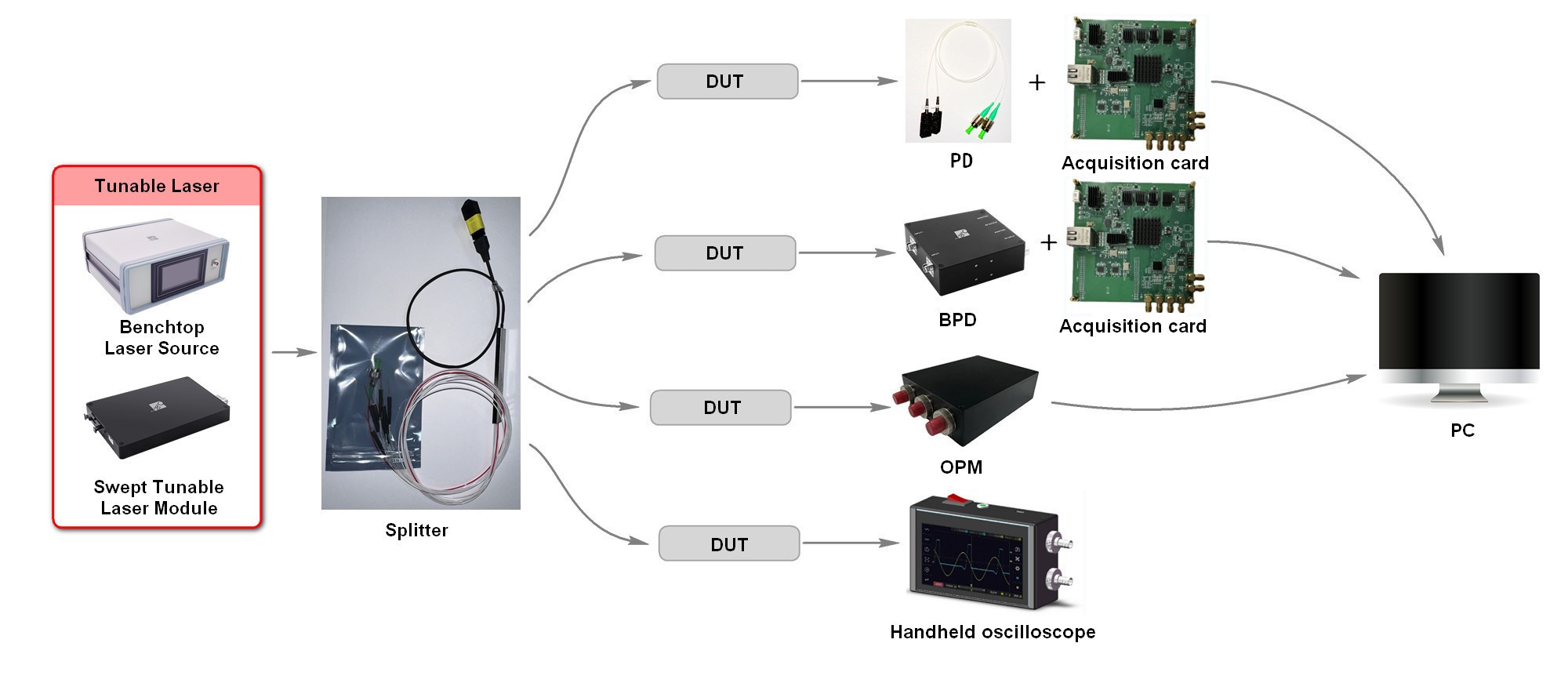

Optical device automation test system mainly consists of light source, optical path, test object, signal detection, data display and other components; with computer software can be fast multi-channel flexible measurement of optical device power, spectrum, bandwidth, SMSR, center wavelength, insertion loss, return loss and other parameters; the whole system is low-cost, feature-rich, and can be achieved in multi-station efficient testing; Light source: Arcadia Optronix’s self-developed swept tunable laser module, which can emit any point wavelength in the C-band, and can also be used for rapid wavelength scanning; the benchtop laser source is equipped with a touch screen input, which can be used independently from the computer.Optical path: Arcadia Optronix’s patented design of two-stage waveguide optical path module, integrated PD detector, compact size, the number of channels can be selected.

Signal detection: Arcadia Optronix’s custom-designed high-speed power meter module, which can be used with the swept tunable laser module, has a unique synchronous acquisition and power correction function, which can quickly and synchronously measure the power and scan the spectrum and other functions; in addition, PD, balance detector, acquisition card and other support can also be provided separately.

Data display: Arcadia Optronix’s innovatively designed handheld oscilloscope combines signal detection and data display into one, with internal integration of PD photoelectric conversion, signal amplification, fast acquisition, real-time display, etc. Equipped with a touch screen, compact size and lithium battery power supply, it can be flexibly carried and used.
