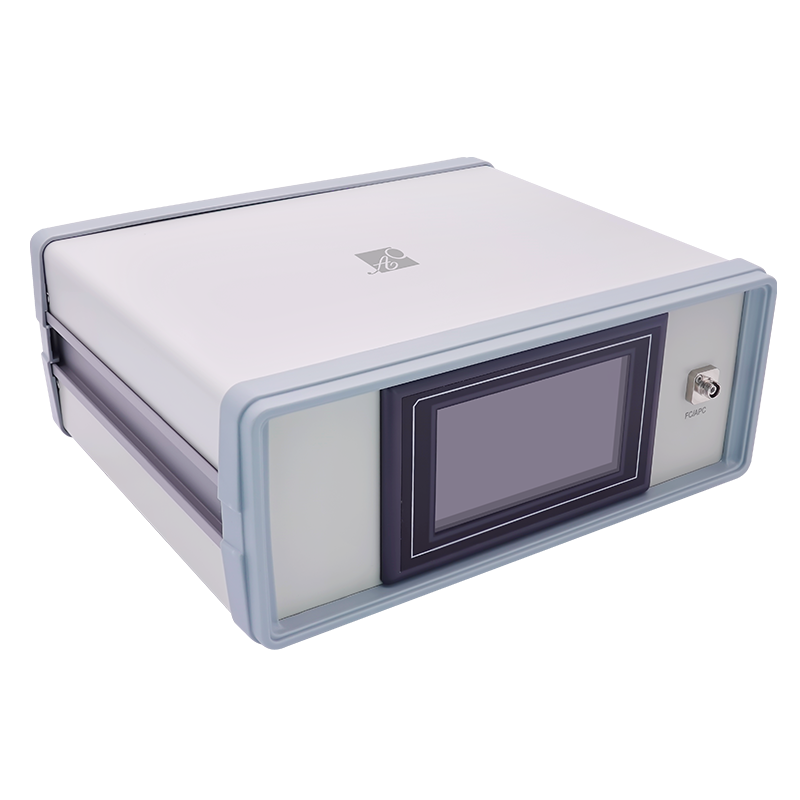

C-Band Benchtop Laser Source
Product Detail
Arcadia Optronix’s Benchtop Laser Source is based on semiconductor DBR laser technology, with single-point wavelength setting and fast wavelength scanning function. The benchtop light source is based on Arcadia Optronix’s core patented technology and has been widely deployed in fiber grating sensing systems and passive component test systems.
Specifications
Parameter | Unit | Value |
Wavelength Range | nm | 1528 - 1568 |
Sweep Speed | Hz | ≤ 2000 |
Sweep Step | GHz | ≥ 1 |
Absolute Wavelength Accuracy | pm | < 5 |
Relative Wavelength Accuracy | pm | < 2 |
Wavelength Stability | pm | < 1 |
Optical Power | mW | ≤ 20 |
Power Stability | dB | ≤ 0.05 |
Power Flatness | dB | ≤ 0.5 |
Side Mode Suppression Ratio | dB | ≥ 40 |
Relative Intensity Noise | dB/Hz | < - 135 |
Linewidth | MHz | < 5 |
Operating Temperature | ℃ | - 15 to + 55 |
Power Consumption | W | ≤ 10 |
Dimensions | mm | 258 × 224 × 102 |
